19-1-2023 21:36:35  #1


New Drive Belt source for Smith Corona Electra 120??

There's a "Phoenix Typewriter" YouTube video of a drive belt change on the Smith Corona Electra 120.

Does anyone know where I can get new drive belts for this typewriter?

Thanks for the help
k



19-1-2023 22:00:10  #2


Re: New Drive Belt source for Smith Corona Electra 120??

I found a post on Reddit that suggested 3.5 inch O.D. O Rings found on Amazon.com.
I don't know if this would work or not.
Here's the Amazon link:
https://www.amazon.com/gp/product/B096Z7BGKC/ref=ppx_yo_dt_b_asin_title_o00_s00?ie=UTF8&psc=1


     Thread Starter


20-1-2023 10:05:25  #3


Re: New Drive Belt source for Smith Corona Electra 120??

Here's a link to the "O" rings that Phoenix Typewriter provides on the YouTube Video.
(There's a bunch of folks on Ebay selling pairs of "O" ring belts for 30-40 dollars and up. Yikes).
Here's the one's from Phoenix Typewriter as suggested.  10 dollars for a bag of 5.
TORK Distributors Compatible with 5 Pack American Plumber W34-OR, 152030 Filter O'ring Replacements.
https://www.amazon.com/gp/product/B00Q0QEW0M/ref=ppx_od_dt_b_asin_title_s00?ie=UTF8&psc=1




     Thread Starter


20-1-2023 10:50:23  #4


Re: New Drive Belt source for Smith Corona Electra 120??

Kalani,

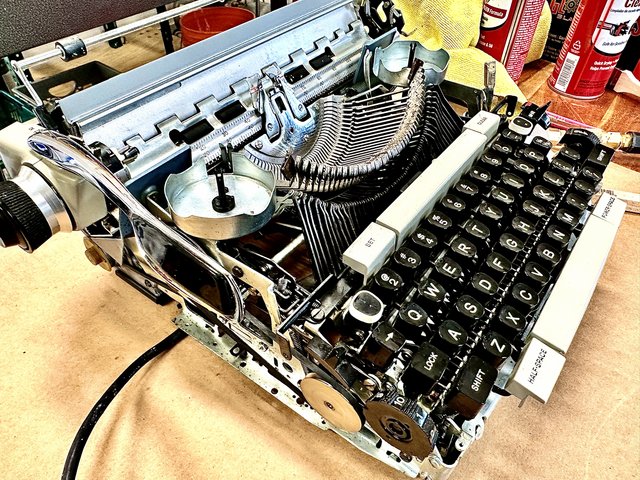

The original small v-belts on the 2 machines that came across my workbench were exactly 4.0" OD in diameter.

I ended up using McMaster-Carr o-rings (their Dash No. 238...part number).  Of Durometer 70A hardness rubber.  The thickness of the o-ring is 1/8" and the OD for a Dash No. 238 was 3.75" OD diameter.

I ended up with a bag of 50 o-rings.  Would be happy to send you a pair or two in the mail for free.

Just drop me your ship-to address via a Message on the forum.



20-1-2023 11:23:21  #5


Re: New Drive Belt source for Smith Corona Electra 120??

Huge thanks.
I have a bunch to do so just ordered a bag.
Mahalo
k

     Thread Starter


20-1-2023 11:24:20  #6


Re: New Drive Belt source for Smith Corona Electra 120??

     Thread Starter


20-1-2023 13:15:13  #7


Re: New Drive Belt source for Smith Corona Electra 120??

I replaced my drive belts with o-rings.  Got the perfect fit with a set from Lowe's - Danco #10714.  I think they cost $5 or so.



20-1-2023 18:39:42  #8


Re: New Drive Belt source for Smith Corona Electra 120??

Jim,

PM sent your way...



30-1-2023 10:08:25  #9


Re: New Drive Belt source for Smith Corona Electra 120??

Kalani wrote:

I found a post on Reddit that suggested 3.5 inch O.D. O Rings found on Amazon.com.
I don't know if this would work or not.
Here's the Amazon link:
https://www.amazon.com/gp/product/B096Z7BGKC/ref=ppx_yo_dt_b_asin_title_o00_s00?ie=UTF8&psc=1


Ordered and returned.

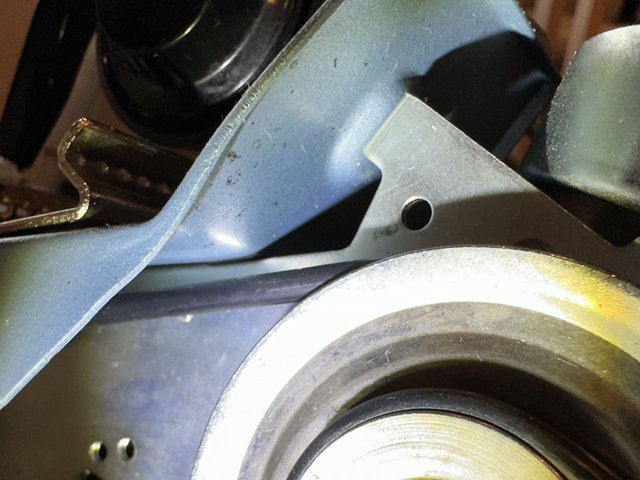

These "O" rings from Amazon are too soft and too loose.  They "sort of" work.  Slightly too loose so the motor drive loop side rubs against the carriage trim tab thing.

k

     Thread Starter


31-1-2023 15:07:24  #10


Re: New Drive Belt source for Smith Corona Electra 120??

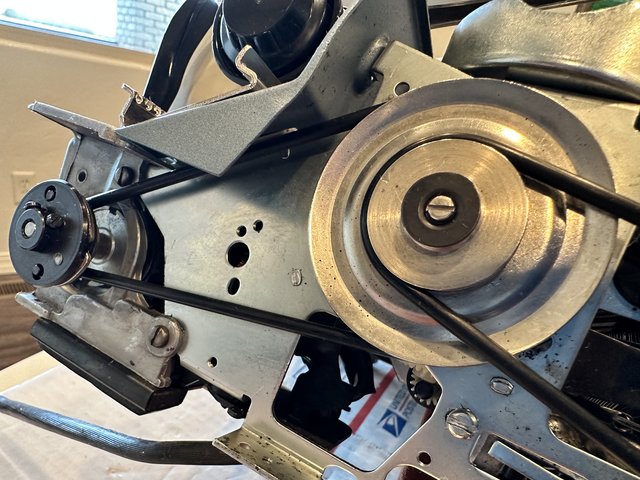

Looks like the Dash #239 worked the best.  There has to be enough tension on the secondary belt (name) to draw the pulley away from the bottom of the metal carriage body trim flange.


     Thread Starter
