Re: Meadow Green - Royal Futura 800...
Good point, Pete. Your self-restraint is wise and admirable.
I ventured briefly down a small rabbit hole looking at auto paint colors from the early 60s as inspiration for a non-standard palette for my grey Futuras. Would love a nice orange scheme, but it would clash with that red Royal logo.
- Pete E.
- Typewriter Talk Elite
Offline
- From: Idaho - USA
- Registered: 23-6-2020
- Posts: 2,402
Re: Meadow Green - Royal Futura 800...
I have everything in-house now to start my typewriter project.

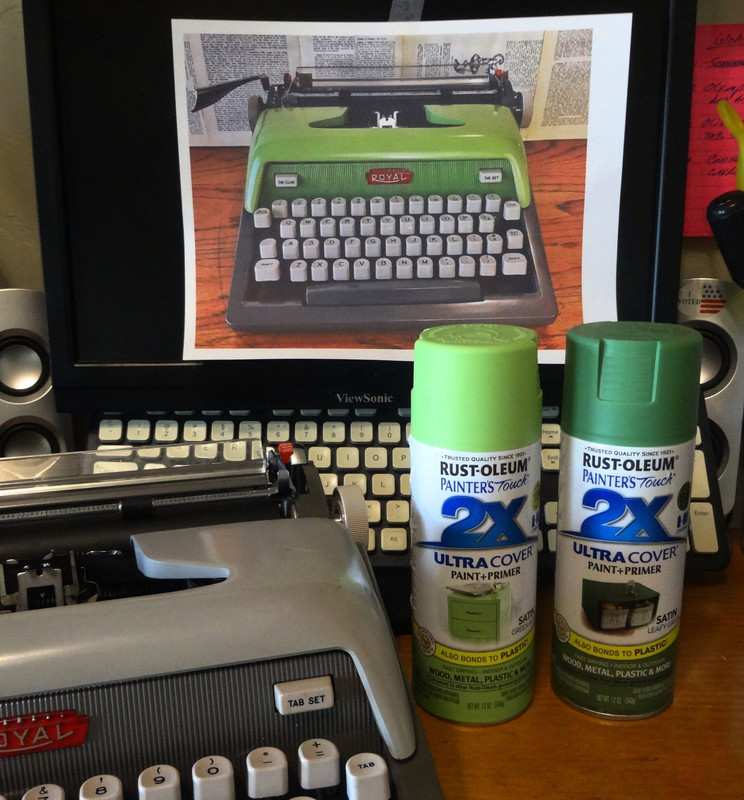

Rustoleum satin paints are "Green Apple" and "Leafy Green". I plan to polish-out the ribbon cover "Apple Green" once it cures for 2-3 days to give it a bit more shine to its finish.
Typewriter needs all of its flaking open-cell foam replaced with felt once I do a full service on it.
.
- •
Thread Starter- Pete E.
- Typewriter Talk Elite
Offline
- From: Idaho - USA
- Registered: 23-6-2020
- Posts: 2,402
Re: Meadow Green - Royal Futura 800...
Full clean and service done today.
All dusting open-cell foam padding replaced with peel & stick felt pads.

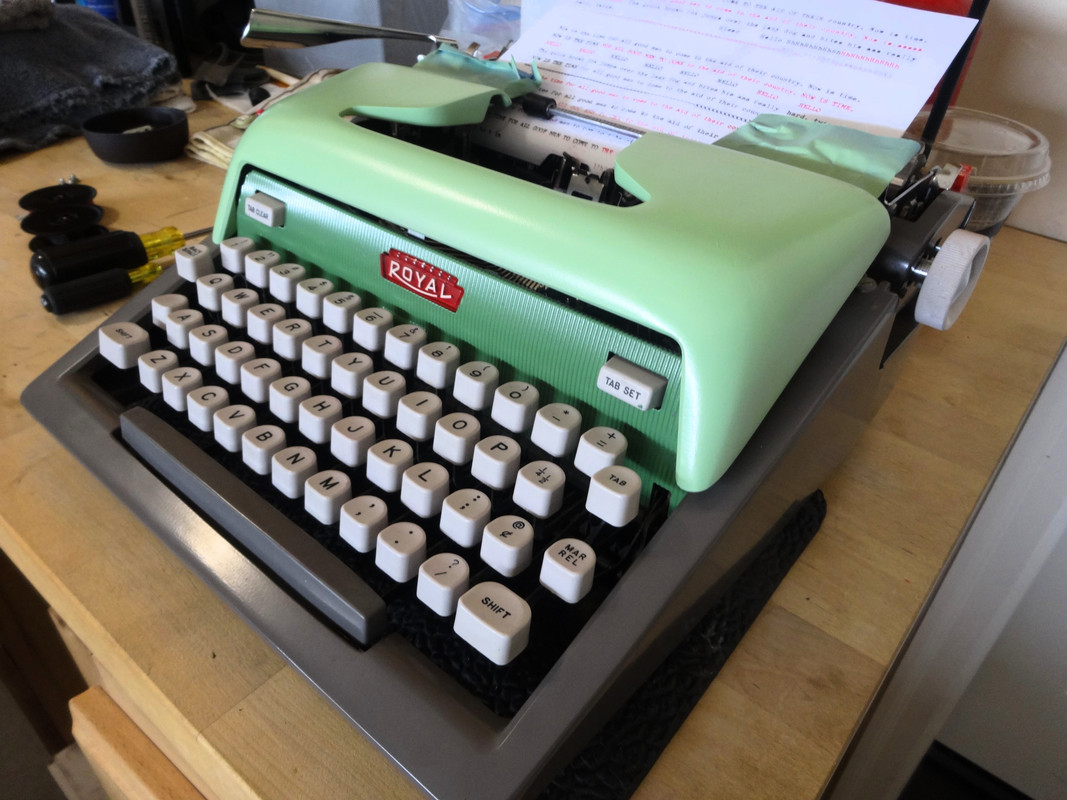

New colours added. Ribbon cover will get one more coat of paint and then will be polished-out 1-2 days later. I used some "Pistachio" as a base coat and will use the "Apple Green" for the final colour coat.
Three (3) functional issues for me to sort-out tomorrow :
1. Main spring needs another 1.5 turns as the carriage stop travelling the last 1-2 inches along the right side of the platen.
2. Tab-set needs to be trouble-shot...as Tab stops are not being set.
3. Ribbon vibrator needs a new spring added as the ribbon guides do not stay closed and that very oddly-shaped factory V-spring is missing. I will just add a conventional extension-spring in place of the missing factory spring.
.
- •
Thread Starter- robmck
- Speed Champion
Offline
- From: Seattle, WA
- Registered: 31-1-2022
- Posts: 373
Re: Meadow Green - Royal Futura 800...
Really, really nice looking, Pete! This is turning out great.
- M. Höhne
- Key Master
Offline
- From: Maine
- Registered: 14-3-2013
- Posts: 639
Re: Meadow Green - Royal Futura 800...
Pete E. wrote:
.... snip .... Ribbon vibrator needs a new spring added as the ribbon guides do not stay closed and that very oddly-shaped factory V-spring is missing. I will just add a conventional extension-spring in place of the missing factory spring. .... snip ....
Pete, I would love to see details of your fix for the Royal vibrator guide-closing spring when you get it finalized. I have several Royals with a failed spring and that kinda disables the typewriter. Spring steel is normally very tough; maybe they should not have chrome plated it. Thanks!
- Pete E.
- Typewriter Talk Elite
Offline
- From: Idaho - USA
- Registered: 23-6-2020
- Posts: 2,402
Re: Meadow Green - Royal Futura 800...
Michael,
Duane Jensen with Phoenix typewriter deserves all the credit.
Here is his You Tube video where I learned the replacement technique with a small extension spring :
- •
Thread Starter- Pete E.
- Typewriter Talk Elite
Offline
- From: Idaho - USA
- Registered: 23-6-2020
- Posts: 2,402
Re: Meadow Green - Royal Futura 800...
And Duane Jensen also has this "quick & dirty" method that does not entail a replacement spring at all and it can be done very quickly right on the machine without the need/time to remove the entire ribbon vibrator assembly off the machine :
- •
Thread Starter- Pete E.
- Typewriter Talk Elite
Offline
- From: Idaho - USA
- Registered: 23-6-2020
- Posts: 2,402
Re: Meadow Green - Royal Futura 800...

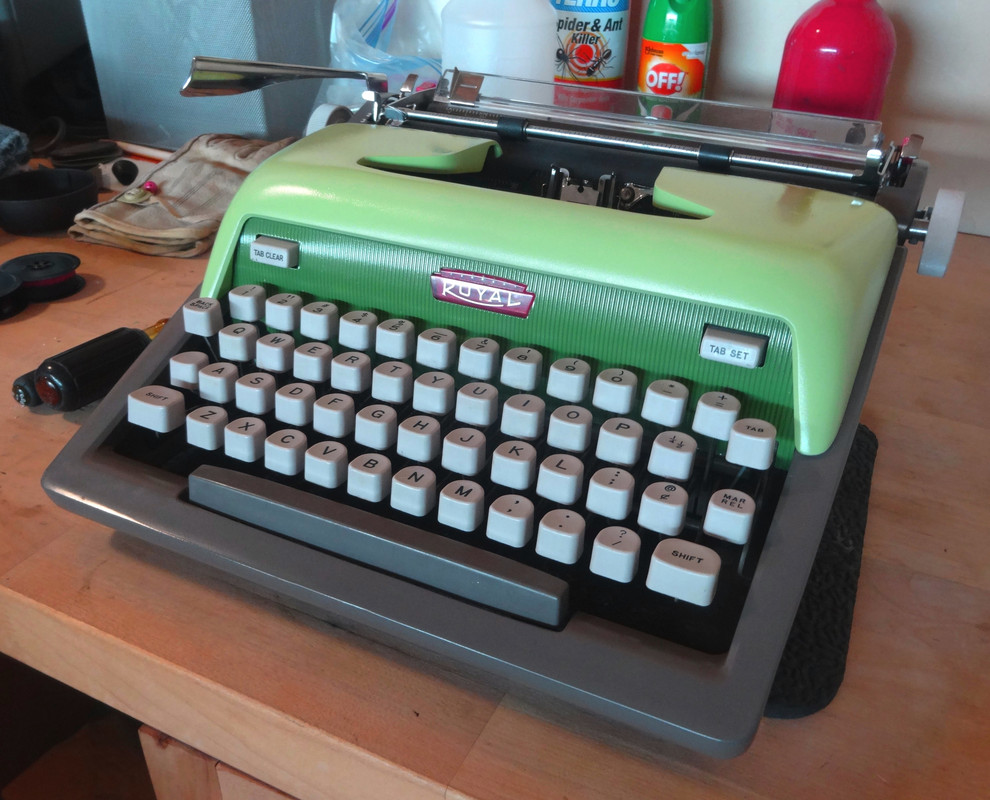

Ribbon cover back in place.
Tab-set issue resolved. Just needed a slight re-form of a metal link towards the back of the machine.
Added 1 full turn of tension of the main spring.
Tomorrow fresh ribbon and its done.
Will give the ribbon cover a final polish-out towards the end of the week after the paint cures for a few more days.
I have some typewriter "levers" coming in a week or so...so I will be able to do my typical hack on these to bring the ribbon-color selection featured to the front of the ribbon cover.
.
- •
Thread Starter- Pete E.
- Typewriter Talk Elite
Offline
- From: Idaho - USA
- Registered: 23-6-2020
- Posts: 2,402
Re: Meadow Green - Royal Futura 800...
Last bit of work done on my Futura 800.

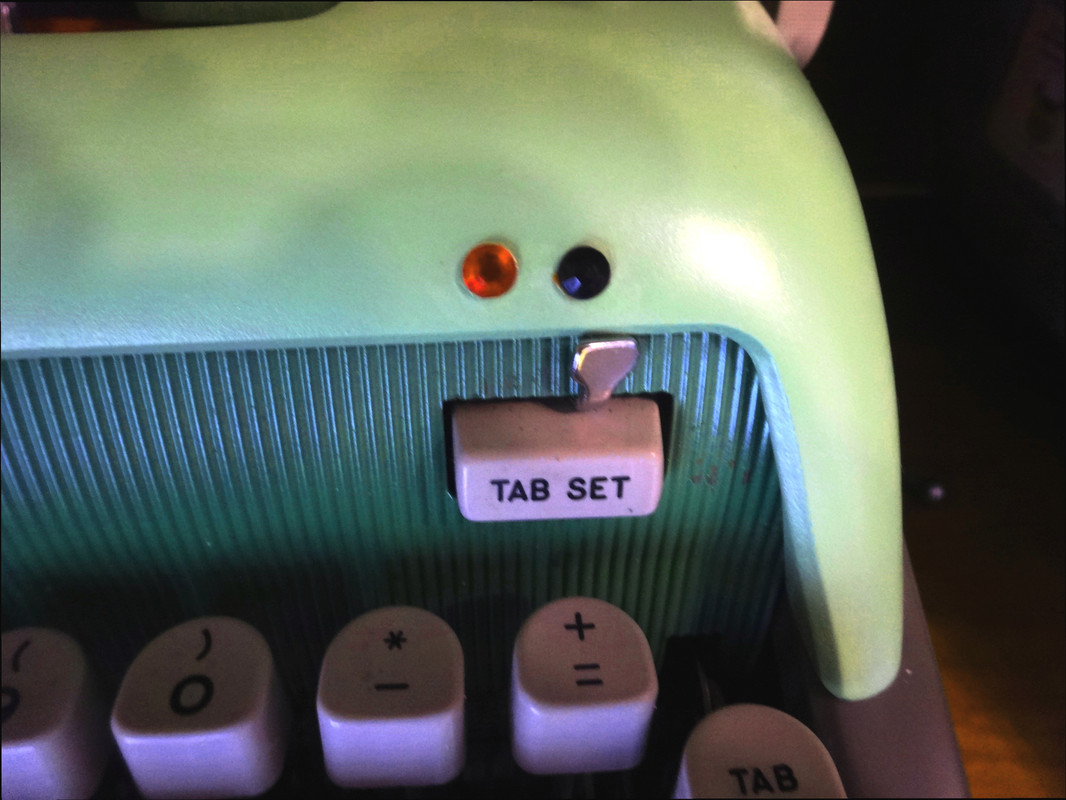

Bringing the red/black ribbon colour selection to the front of the ribbon cover.
.
- •
